Cessna 400

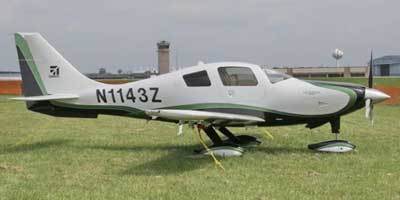

The Cessna 400 is single engine, fixed gear, low-wing, aircraft built from composite materials by Cessna Aircraft. The Cessna 400 was originally built by Columbia Aircraft as the Columbia 400 between 2004 and 2010. From 2013 the aircraft was built as the Cessna TTx Model until 2018. It seats up to 3 passengers and 1 pilot.



Specifications



Exterior Dimensions

Wing span: 35 ft 8 in
Length: 25 ft 2 in
Height: 9 ft 0 in

Engine

Manufacturer: Continental
Model: TSIO-550-C
Horsepower: 310 hp
Overhaul (HT): 2000/2200 TBO or 12 years



Performance

Horsepower: 310.00Gross Weight: 3,600
Top Speed: 235 ktsEmpty Weight: 2,220
Cruise Speed: 220 kiasFuel Capacity: 102
Stall Speed (dirty): 53Range: 829 nm

Rate of Climb: 1,400Rate of Climb (One Engine):
Service Ceiling: 25,000Ceiling (One Engine):

TakeoffLanding
Ground Roll: 1,300Ground Roll 1,250
Takeoff Roll Over 50 ft: 1,900Landing Roll Over 50 ft: 2,600





History



The Cessna 400 was derived from the normally aspirated Columbia 300, which in turn was derived from the Lancair ES kit aircraft.

The 400 is powered by a turbocharged Continental TSIO-550-C engine producing 310 horsepower at 2600 rpm. The 400 features a Garmin G1000 glass cockpit that was later incorporated into the 300 to create the Cessna 350.

The 400's Continental TSIO-550-C engine is capable of being operated lean of peak. Measured in flight at 11,000 feet, 50 F° rich of peak turbine inlet temperature, maximum cruise yielded 199 knots true air speed and 24.7 US gallons per hour fuel flow. At the same operating parameters and 50–75 °F lean of peak the 400 was measured at 189 knots TAS and 17.8 US gal (106.8 lb/hr, 67.6 l/hr).



Development



The Columbia 400 was marketed with an optional ice protection system, known as E-Vade that was not certified for flight into known icing. The system consists of heat-conducting graphite foil panels on the wing and tail leading edges. These panel areas are heated by 70 volt 100 amp electrical power delivered from a dedicated alternator. The system is controlled by a single switch.

The 400 features optional speedbrakes mounted on the wing's top surfaces. The 400 nosewheel is not directly steerable; directional control while taxiing is accomplished using differential braking on the mainwheels.

Initially sold simply as the Cessna 400, the aircraft was given the marketing name Corvalis TT for twin turbocharged by Cessna on 14 January 2009. The name is a derivation of the town of Corvallis, Oregon which is west of the Bend, Oregon location of the Cessna plant that built the aircraft, prior to closing the plant and relocating production to Independence, Kansas in 2009.

In April 2009 Cessna announced that it would close the Bend, Oregon factory where the Cessna 400 was produced and move production to Independence, Kansas, with the composite construction moved to Mexico. The production line was restarted in October, 2009 in the Cessna Independence paint facility, at a rate of one aircraft per six months initially. This was to allow the new workers, plus the 30 employees transferred from Bend, to gain experience and also allow Cessna the opportunity to retail its unsold inventory of Cessna 350s and 400s. At that time the company anticipated moving the 350/400 production to a permanent facility by the end of 2009.



Further Refinements



In December 2010 a Cessna 400 that was being test flown by an FAA test pilot at the factory developed a fuel leak, the cause of which was determined to be that the aircraft had “suffered a significant structural failure in the wing during a production acceptance flight test. The wing skin disbonded from the upper forward wing spar. The length of the disbond was approximately 7 feet.” As a result, the FAA issued an Emergency Airworthiness Directive affecting seven Cessna 400s and one 350, all on the production line. The AD did not affect any customer aircraft in service, but did delay deliveries. In September 2011 the Federal Aviation Administration proposed a US$2.4M fine against the company for its failure to follow quality assurance requirements while producing fiberglass components at its plant in Chihuahua, Mexico. Excess humidity meant that the parts did not cure correctly and quality assurance did not detect the problems. The FAA also discovered 82 other aircraft parts that had been incorrectly made and not detected by the company's quality assurance.

On 29 March 2011 Cessna unveiled several improvements to the Cessna 400 at Sun ‘n Fun, designating the new variant the TTx. The aircraft has not been selling well since the late-2000s recession started, with 110 delivered in 2008, the first year Cessna produced the model, 41 in 2009 and just seven sold in 2010. The improved aircraft features a new glass cockpit panel, designed by Cessna and based on the Garmin G2000. Called Intrinzic, it features two 14 in (36 cm) wide high definition displays and a touchscreen controller that uses an infra-red grid to accept touch commands. The updated model also has dual Attitude and Heading Reference Systems, a GFC 700 autopilot, a Garmin GTS800 traffic avoidance system, Garmin GTX 33ES transponder with ADS-B and the Garmin Electronic Stability Protection System, which protects the aircraft from operations outside the approved flight envelope. The new TTx model has no traditional instruments and instead employs the L-3 Trilogy as a back-up. The TTx also features a built-in pulse oximeter, a new paint scheme and a new interior. By the end of Sun ‘n Fun 2011 the company indicated it had sold 16 of the new TTx model.

At Sun ‘n Fun in March 2012 the company announced that a flight-into-known icing package would be an option on the TTx model. The system will provide up to 2.5 hours icing protection.

The design's production came to an end in February 2018. Sales of the model had been poor, with only 23 examples sold in 2017, compared to its main competitor, the Cirrus SR22, which sold 309 models that same year.



Variants



Columbia 400

Initial model produced by Columbia Aircraft

Cessna 400 TT Corvalis

Initial Cessna-produced model, TT designating Twin Turbocharged

Cessna TTx Model T240

Improved Cessna model announced in March 2011, with upgraded avionics and interior. The TTx first flew on 2 March 2013 and is equipped with Garmin G2000 14 avionics and a 310 hp (231 kW) Continental TSIO-550-C.[16][23] Certification for Flight Into Known Icing (FIKI) was added in June 2014.
