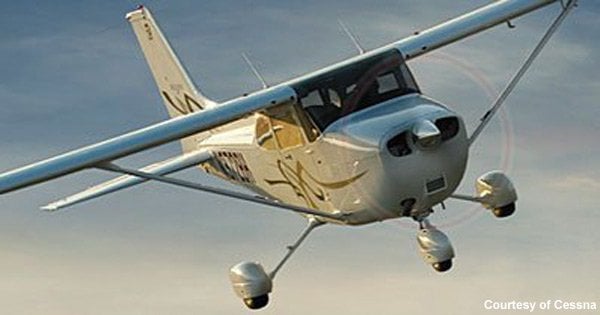

Cessna 172 Skyhawk

The Cessna 172 Skyhawk is a single engine, piston aircraft with fixed gear. The C172 is a high wing airplane made by the Cessna Aircraft Company between the years 1956 until 1986. It was taken out of production until 1997 where is still made today. The Cessna Skyhawk is the ultimate training aircraft and the most popular single-engine aircraft ever built. First flown in 1955, more 172s have been built than any other aircraft. It seats up to 3 passengers and 1 pilot.



Specifications 172S (1998 to 2018)



Exterior Dimensions

Wing span: 36ft 1in
Length: 27ft 2in
Height: from 8ft 11in

Cabin Interior

Height: 48 in
Width: 40 in
Length: 11 ft 10 in

Weights

Max TO weight: 2550 LBS
Empty Weight: 1,680 LBS
Maximum Load: 878
Fuel capacity: 53 GAL

Engine

Manufacturer: Lycoming Motor
Model: IO-360-L2A
Horsepower: 180 HP
Overhaul (HT): 2000hr TBO
Years before overhaul: 12



Performance Specifications Cessna 172SP

Maximum Cruise Speed 124 ktas (230 km/h)
Maximum Range 640 nm (1,185 km)
Takeoff Distance 1,630 ft (497 m)
Ground Roll 960 ft (293 m)
Landing Distance 1,335 ft (407 m)
Ground Roll 575 ft (175 m)
Service Ceiling 14,000 ft (4,267 m)
Maximum Climb Rate 730 fpm (223 mpm)
Maximum Limit Speed 163 kias (302 km/h)
Stall Speed 48 kcas (89 km/h)



View Cessna 172, A-B Performance Specifications

View Cessna 172C Performance Specifications

View Cessna 172D-H Performance Specifications

View Cessna 172I Performance Specifications

View Cessna 172K-L Performance Specifications

View Cessna 172M Performance Specifications

View Cessna 172N Performance Specifications

View Cessna 172P Performance Specifications

View Cessna 172Q Performance Specifications



History

Measured by its longevity and popularity, the Cessna 172 is the most successful aircraft in history. Cessna delivered the first production model in 1956 and as of 2015, the company and its partners had built more than 44,000. The aircraft remains in production today.

The Skyhawk's main competitors have been the Beechcraft Musketeer and Grumman AA-5 series (neither currently in production), the Piper Cherokee, and, more recently, the Diamond DA40 and Cirrus SR20.

Design and development

The C172 Skyhawk was introduced in 1956. It was equipped with a Continental O-300 145 hp (108 kW) six-cylinder, air-cooled engine and had a maximum gross weight of 2,200 lb (998 kg). Introductory base price was US $8,995.

The Cessna 172 started life as a tricycle landing gear variant of the taildragger Cessna 170, with a basic level of standard equipment. In January 1955, Cessna flew an improved variant of the Cessna 170, a Continental O-300-A-powered Cessna 170C with larger elevators and a more angular tailfin. Although the variant was tested and certified, Cessna decided to modify it with a tricycle landing gear, and the modified Cessna 170C flew again on June 12, 1955. To reduce the time and cost of certification, the type was added to the Cessna 170 type certificate as the Model 172. Later, the 172 was given its own type certificate, 3A12. The 172 became an overnight sales success, and over 1,400 were built in 1956, its first full year of production.

Early 172s were similar in appearance to the 170s, with the same straight aft fuselage and tall landing gear legs, although the 172 had a straight tailfin while the 170 had a rounded fin and rudder. In 1960, the 172A incorporated revised landing gear and the swept-back tailfin, which is still in use today.

The final aesthetic development, found in the 1963 172D and all later 172 models, was a lowered rear deck allowing an aft window. Cessna advertised this added rear visibility as “Omni-Vision.”

Production halted in the mid-1980s, but resumed in 1996 with the 160 hp (120 kW) Cessna 172R Skyhawk. Cessna supplemented this in 1998 with the 180 hp (135 kW) Cessna 172S Skyhawk SP.

Modifications

The Cessna 172 may be modified via a wide array of supplemental type certificates (STCs), including increased engine power and higher gross weights. Available STC engine modifications increase power from 180 to 210 hp (134 to 157 kW), add constant-speed propellers, or allow the use of automobile gasoline. Other modifications include additional fuel tank capacity in the wing tips, added baggage compartment tanks, added wheel pants to reduce drag, or enhanced landing and takeoff performance and safety with a STOL kit. The 172 has also been equipped with the 180 hp (134 kW) fuel injected Superior Air Parts Vantage engine.

The C172 holds the world flight endurance record. Cessna 172

On December 4, 1958, Robert Timm and John Cook took off from McCarran Airfield in Las Vegas, NV in a newly built Cessna 172, registration number N9172B. Sixty-four days, 22 hours, 19 minutes and 5 seconds later, they landed back at McCarran Airfield on February 4, 1959. Food and water were transferred by matching speeds with a chase car on a straight stretch of road in the desert, and hoisting the supplies aboard with a rope and bucket. Fuel was taken on by hoisting a hose from a fuel truck up to the aircraft, filling an auxiliary belly tank installed for the flight, pumping that fuel into the aircraft's regular tanks and then filling the belly tank again. The drivers steered while a second person matched speeds with the aircraft with his foot on the vehicle's accelerator pedal.

Variants

1956 Cessna 172 Early Cessna 172s had a “fastback” rear cabin with no rear window.

Cessna 172 (1956-1959) Serial Numbers 28000 through 46754

The basic 172 appeared in November 1955 as the 1956 model and remained in production until replaced by the 172A in early 1960. It was equipped with a Continental O-300 145 hp (108 kW) six-cylinder, air-cooled engine and had a maximum gross weight of 2,200 lb (998 kg). Introductory base price was US$8,995 and a total of 4,195 were constructed over the five years.

Cessna 172A (1960) Serial Numbers 46755 through 47746 – A` model was first with swept vertical stabilizer.

The 1960 model 172A introduced a swept-back tailfin and rudder, as well as float fittings. The price was US$9,450 and 1,015 were built.

Cessna 172B (1961) Serial Numbers 47747 through 48734 – Skyhawk design begins with B model.

The 172B was introduced in late 1960 as the 1961 model and featured a shorter landing gear, engine mounts lengthened three inches (76 mm), a reshaped cowling, and a pointed propeller spinner. For the first time, the “Skyhawk” name was applied to an available deluxe option package. This added optional equipment included full exterior paint to replace the standard partial paint stripes and standard avionics. The gross weight was increased to 2,250 lb (1,021 kg).

Cessna 172C (1962) Serial Numbers 48735 through 49544 – Mx T.O. wt up to 2250 lbs on 1962

The 1962 model was the 172C. It brought to the line an optional autopilot and a key starter to replace the previous pull-starter. The seats were redesigned to be six-way adjustable. A child seat was made optional to allow two children to be carried in the baggage area. The 1962 price was US$9,895. A total of 889 172C models were produced.

Cessna 172D (1963) Serial Numbers 49545 through 50572 – Mx T.O. wt up to 2300 lbs on 1963. Omni-Vision rear window & other improvements on D.

The 1963 172D model introduced the lower rear fuselage with a wraparound Omni-Vision rear window and a one-piece windshield. Gross weight was increased to 2,300 lb (1,043 kg), where it would stay until the 172P. New rudder and brake pedals were also added. 1,146 172Ds were built.

1963 also saw the introduction of the 172D Powermatic. This was equipped with a Continental GO-300E producing 175 horsepower (130 kW) and a cruise speed 11 mph (18 km/h) faster than the standard 172D. In reality this was not a new model, but a Cessna 175 Skylark that had been renamed for its last year of production. The Skylark had gained a reputation for poor engine reliability, and the renaming of it as a 172 was a marketing attempt to regain sales through rebranding. The move was not a success, and neither the 1963 Powermatic nor the Skylark were produced again after the 1963 model year.

Cessna 172E (1964) Serial Numbers 50573 through 51822

The 172E was the 1964 model. The electrical fuses were replaced with circuit breakers. The 172E also featured a redesigned instrument panel. 1,401 172Es were built that year as production continued to increase.

Cessna 172F (1965) Serial Numbers 51823 through 53392

The 1965 model 172F introduced electrically operated flaps to replace the previous lever-operated system. It was built in France by Reims Cessna as the F172 until 1971. These models formed the basis for the U.S. Air Force's T-41A Mescalero primary trainer, which was used during the 1960s and early 1970s as initial flight screening aircraft in USAF Undergraduate Pilot Training (UPT). Following their removal from the UPT program, some extant USAF T-41s were assigned to the U.S. Air Force Academy for the cadet pilot indoctrination program, while others were distributed to Air Force aero clubs.

A total of 1,436 172Fs were completed.

Cessna 172G (1966) Serial Numbers 53393 through 54892

The 1966 model year 172G introduced a more pointed spinner and sold for US$12,450 in its basic 172 version and US$13,300 in the upgraded Skyhawk version. 1,597 were built.

Cessna 172H (1967) Serial Numbers 54893 through 56512

The 1967 model 172H was the last Continental O-300 powered model. It also introduced a shorter-stroke nose gear oleo to reduce drag and improve the appearance of the aircraft in flight. A new cowling was used, introducing shock-mounts that transmitted lower noise levels to the cockpit and reduced cowl cracking. The electric stall warning horn was replaced by a pneumatic one.

The 1967 model 172H sold for US$10,950 while the Skyhawk version was US$12,750.[22] A total of 839 172Hs were built.

Cessna 172I (1968) Serial Numbers 56513 through 57161

The 1968 model marked the beginning of the Lycoming-powered 172s.

The “I” model was introduced with a Lycoming O-320-E2D engine of 150 hp (112 kW), an increase of 5 hp (3.7 kW) over the Continental powerplant. The increased power resulted in an increase in optimal cruise from 130 mph (209 km/h) TAS to 131 mph (211 km/h) TAS (true airspeed). There was no change in the sea level rate of climb at 645 ft (197 m) per minute.

The 172I also introduced the first standard “T” instrument arrangement. The 172I saw an increase in production over the “H” model, with 1,206 built.

Cessna 172J

The Cessna Company planned to drop the previous 172 configuration for the 1968 model year and replace it with a cantilever-wing/stabilator configuration that would be the 172J. However, as time for model introduction neared, those dealers who were aware of the change began applying pressure on the factory to continue the previous configuration. They felt the new model would be less usable as a trainer. Consequently, and at the last minute, the decision was made to continue the 172 in its original configuration. The planned 172J configuration would be introduced as a new model, the 177. The deluxe option would become the 177 Cardinal. The “J” designation was never publicly used.

Cessna 172K (1969-1970) Serial Numbers 57162 through 59223

The next model year was the 1969 “K” model. The 1969 172K had a redesigned tailfin cap and reshaped rear windows. Optional long-range 52 US gal (197 l) wing fuel tanks were offered. The rear windows were slightly enlarged by 16 square inches (103 cm2). The 1969 model sold for US$12,500 for the 172 and US$13,995 for the Skyhawk, with 1,170 made.

The 1970 model was still called the 172K, but sported fiberglass, downward-shaped, conical wing tips. Fully articulated seats were offered as well. Production in 1970 was 759 units.

Cessna 172L (1971-1972) Serial Numbers 59224 through 60578

The 172L, sold during 1971 and 1972, replaced the main landing gear legs (which were originally flat spring steel) with tapered, tubular steel gear legs. The new gear had a width that was increased by 12 in (30 cm). The new tubular gear was lighter, but required aerodynamic fairings to maintain the same speed and climb performance as experienced with the flat steel design. The “L” also had a plastic fairing between the dorsal fin and vertical fin to introduce a greater family resemblance to the 182's vertical fin.

The 1971 model sold for US$13,425 in the 172 version and US$14,995 in the Skyhawk version. 827 172Ls were sold in 1971 and 984 in 1972.

Cessna 172M (1973-1976) Serial Numbers 60759 through 67584

The 172M of 1973–76 gained a drooped wing leading edge for improved low-speed handling. This was marketed as the “camber-lift” wing.

The 1974 172M was also the first to introduce the optional ‘II' package which offered higher standard equipment, including a second nav/comm radio, an ADF and transponder. The baggage compartment was increased in size, and nose-mounted dual landing lights were available as an option.

The 1975 model 172M sold for US$16,055 for the 172, US$17,890 for the Skyhawk and US$20,335 for the Skyhawk II.

In 1976, Cessna stopped marketing the aircraft as the 172 and began exclusively using the “Skyhawk” designation. This model year also saw a redesigned instrument panel to hold more avionics. Among other changes, the fuel and other small gauges were relocated to the left side for improved pilot readability compared with the earlier 172 panel designs. Total production of “M” models was 7306 over the four years it was manufactured.

Cessna 172N (1977-1980) Serial Numbers 67585 through 74009

The Skyhawk N, or Skyhawk/100 as Cessna termed it, was introduced for the 1977 model year. The “100” designation indicated that it was powered by a Lycoming O-320-H2AD, 160 horsepower (119 kW) engine designed to run on 100-octane fuel, whereas all previous engines used 80/87 fuel. But this engine proved troublesome, and it was replaced by the similarly rated O-320-D2J to create the 1981 172P.

The 1977 “N” model 172 also introduced rudder trim as an option and standard “pre-selectable” flaps. The price was US$22,300, with the Skyhawk/100 II selling for US$29,950.

The 1978 model brought a 28-volt electrical system to replace the previous 14-volt system. Air conditioning was an option.

The 1979 model “N” increased the flap-extension speed for the first 10 degrees to 115 knots (213 km/h). Larger wing tanks increased the optional fuel to 66 US gallons (250 l).

The “N” remained in production until 1980 when the 172P or Skyhawk P was introduced.

Cessna 172O

There was no “O” (“Oscar”) model 172, to avoid confusion with the number zero.

Cessna 172P (1981-1986) Serial Numbers 75035 through 76673

The 172P, or Skyhawk P, was introduced in 1981 to solve the reliability problems of the “N” engine. The Lycoming O-320-D2J was a great improvement over the O-320-H2AD.

The “P” model also saw the maximum flap deflection decreased from 40 degrees to 30 to allow a gross weight increase from 2,300 lb (1,043 kg) to 2,400 lb (1,089 kg). A wet wing was optional, with a capacity of 62 US gallons of fuel.

The price of a new Skyhawk P was US$33,950, with the Skyhawk P II costing US$37,810 and the Nav/Pac equipped Skyhawk P II selling for US$42,460.

In 1982, the “P” saw the landing lights moved from the nose to the wing to increase bulb life. The 1983 model added some minor soundproofing improvements and thicker windows.

A second door latch pin was introduced in 1984.

Production of the “P” ended in 1986, and no more 172s were built for eleven years as legal liability rulings in the US had pushed Cessna's insurance costs too high, resulting in dramatically increasing prices for new aircraft.

There were only 195 172s built in 1984, a rate of fewer than four per week

Cessna 172Q Cutlass (1983-1984) Serial Numbers 75869 through 76259

The 172Q was introduced in 1983 and given the name Cutlass to create an affiliation with the 172RG, although it was actually a 172P with a Lycoming O-360-A4N engine of 180 horsepower (134 kW). The aircraft had a gross weight of 2,550 lb (1,157 kg) and an optimal cruise speed of 122 knots (226 km/h) compared to the 172P's cruise speed of 120 knots (222 km/h) on 20 hp (15 kW) less. It had a useful load that was about 100 lb (45 kg) more than the Skyhawk P and a rate of climb that was actually 20 feet (6 m) per minute lower, due to the higher gross weight. Production ended after only three years when all 172 production stopped.

Cessna 172R (1997-2012) Serial Numbers 80004 through 81622

The Skyhawk R was introduced in 1996 and is powered by a derated Lycoming IO-360-L2A producing a maximum of 160 horsepower (120 kW) at just 2,400 rpm. This is the first Cessna 172 to have a factory-fitted fuel-injected engine.

The 172R's maximum takeoff weight is 2,450 lb (1,111 kg). This model year introduced many improvements, including a new interior with soundproofing, an all new multi-level ventilation system, a standard four point intercom, contoured, energy absorbing, 26g front seats with vertical and reclining adjustments and inertia reel harnesses.

Cessna 172S (1999-current) Serial Numbers 80086 through current

The Cessna 172S was introduced in 1998 and is powered by a Lycoming IO-360-L2A producing 180 horsepower (134 kW). The maximum engine rpm was increased from 2,400 rpm to 2,700 rpm resulting in a 20 hp (15 kW) increase over the “R” model. As a result, the maximum takeoff weight was increased to 2,550 lb (1,157 kg). This model is marketed under the name Skyhawk SP, although the Type Certification data sheet specifies it is a 172S.

The 172S is built primarily for the private owner-operator and is, in its later years, offered with the Garmin G1000 avionics package and leather seats as standard equipment. As of 2009, only the S model is in production.

TRAINER OF CHOICE

The Cessna Skyhawk is the ultimate training aircraft and the most popular single-engine aircraft ever built. With forgiving flight characteristics, great visibility, a sophisticated glass cockpit outfitted with G1000 avionics, slow landing speed and a forgiving stall – the Cessna Skyhawk is a flight training favorite ideally suited for student pilots.

Today's Cessna Skyhawk is powered by the latest technology in integrated cockpit avionics, the Garmin G1000 NXi. With an improved graphical interface, more powerful hardware, higher resolution displays, added functionality to improve situational awareness, and optional wireless technology, managing the flight deck has never been easier.

(courtesy Textron Cessna)



Special versions

Reims FR172

The FR172 Reims Rocket was produced by Reims Aviation in France from the late 1960s to the mid-1970s. It was powered by a Rolls-Royce built, fuel-injected, Continental IO-360-H(B) 210 hp (160 kW) engine with a constant-speed propeller. Variants included the FR172E until FR172J.

Turbo Skyhawk JT-A

Model introduced in July 2014 for 2015 customer deliveries, powered by a 155 hp (116 kW) Continental CD-155 diesel engine installed by the factory under a supplemental type certificate. Initial retail price in 2014 was $435,000. The model has a top speed of 131 kn (243 km/h) and burns 3 U.S. gallons (11 L; 2.5 imp gal) per hour less fuel than the standard 172. As a result, the model has a 885 nmi (1,639 km) range, an increase of more than 38% over the standard 172. This model is a development of the proposed and then cancelled Skyhawk TD. Cessna has indicated that the JT-A will be made available in 2016.

In reviewing this new model Paul Bertorelli of AVweb said: “I’m sure Cessna will find some sales for the Skyhawk JT-A, but at $420,000, it’s hard to see how it will ignite much market expansion just because it’s a Cessna. It gives away $170,000 to the near-new Redbird Redhawk conversion which is a lot of change to pay merely for the smell of a new airplane. Diesel engines cost more than twice as much to manufacture as gasoline engines do and although their fuel efficiency gains back some of that investment, if the complete aircraft package is too pricey, the debt service will eat up any savings, making a new aircraft not just unattractive, but unaffordable. I haven’t run the numbers on the JT-A yet, but I can tell from previous analysis that there are definite limits.”

The model was certified by both EASA and the FAA in June 2017. It was discontinued in May 2018, due to poor sales as a result of the aircraft's high price, which was twice the price of the same aircraft as a diesel conversion. The aircraft remains available as an STC conversion from Continental Motors, Inc.
