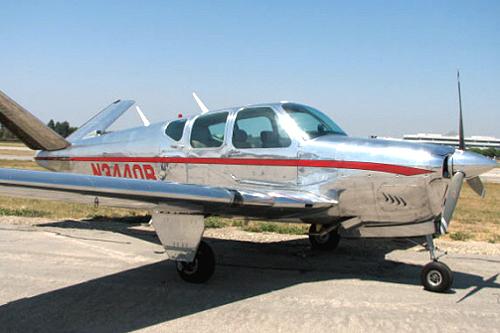

Beech D35 Bonanza

The Beech D35 Bonanza was manufactured in 1953, serial number D3401 through D3698. It is a single-engine, piston aircraft configured as a cantilever low-wing aircraft with a V-tail. Distinguishing features are: retractable landing gear,  variable pitch propeller. Model D35 Bonanza seats up to 3 passengers and 1 pilot.



Specifications



Exterior Dimensions

Wing span: 32 ft 10 in
Length: 25 ft 2 in
Height: 7 ft 7 in

Weights

Max TO weight: 2,725 lb
Empty Weight:  1,650 lbs
Maximum Payload: 1,075
Fuel capacity: 40 gal (34 usable)

Engine

Manufacturer: Continental Motors
Model: E-185-11
Horsepower: 205 hp
Overhaul (HT): 1500hr TBO

Standard Avionics

Digital Nav/Coms
ADS-B In/Out



Performance

Horsepower: 205.00Gross Weight: 2,700
Top Speed: 165Empty Weight: 1,650
Cruise Speed: 152Fuel Capacity: 39
Stall Speed (dirty): 48Range: 510

Rate of Climb: 1,100Rate of Climb (One Engine):
Service Ceiling: 18,000Ceiling (One Engine):

TakeoffLanding
Ground Roll: 1,250Ground Roll 625
Takeoff Roll Over 50 ft: 1,500Landing Roll Over 50 ft: 975



History



C35 with increased takeoff weight and minor changes and Continental E-185-11 205 hp engine driving a two blade constant speed propeller. Max speed 165 kts and cruising speed of 178 kts. 298 were produced.

Distinguishing Features

  • No window behind rear seats
  • Long-chord stabilators
  • Wing root fillets
  • Reclining front seats
  • Rear bench seats with headrests and two-position adjustable seat backs
  • Single, throw-over control yoke
  • Push-pull engine controls
  • Electric propeller pitch change mechanism
  • Gear handle on right, flap on left
  • “Sight and touch” gear and flap controls
