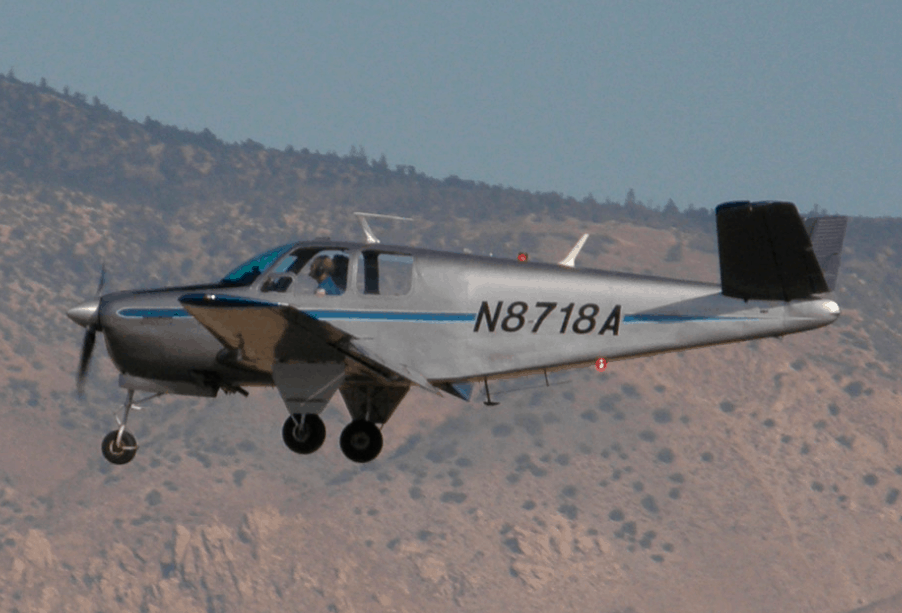

Beech Bonanza B35

The Beech Bonanza B35 was manufactured in 1950, serial number D2201 through D2680. It is a single-engine, piston aircraft configured as a cantilever low-wing aircraft with a V-tail. Distinguishing features are: retractable landing gear, variable pitch propeller. Model B35 Bonanza seats up to 3 passengers and 1 pilot.



Specifications



Exterior Dimensions

Wing span: 32 ft 10 in
Length: 25 ft 2 in
Height: 7 ft 1 in

Weights

Max TO weight: 2,650 lb
Empty Weight:  1,575 lbs
Maximum Payload: 1,070
Fuel capacity: 40 US gallons (34 usable)

Engine

Manufacturer: Continental Motors
Model: E-185-8
Horsepower: 196 hp
Overhaul (HT): 1500hr TBO

Standard Avionics

Digital Nav/Coms
ADS-B In/Out



Performance

Horsepower: 196.00 Gross Weight: 2,650
Top Speed: 168 Empty Weight: 1,575
Cruise Speed: 148 Fuel Capacity: 39
Stall Speed (dirty): 49 Range: 470

Rate of Climb: 890 Rate of Climb (One Engine):
Service Ceiling: 17,100 Ceiling (One Engine):

Takeoff Landing
Ground Roll: 1,275 Ground Roll 625
Takeoff Roll Over 50 ft: 1,515 Landing Roll Over 50 ft: 950





History



The Model B35 Bonanza had all the improvements found in the A35 but featured the Continental E-185-8 engine that developed 196 hp for one minute at 2450 rpm. Flap extension increased from 20 to 30 degrees, front and rear cabin armrests and chart pockets were minor improvements found on the Model B35. B35 illustrated has standard exterior paint scheme. Note baggage door located on right side. 480 B35 were produced during the 1950 sales year.

Distinguishing Features



  • No window behind rear seats
  • Small-chord stabilators
  • Front and rear bench seats
  • Single, throw-over control yoke
  • Push-pull engine controls
  • Electric propeller pitch change mechanism
  • Gear handle on right, flap on left



Find all Beech Bonanza B35 for sale now!



This article uses material from this Wikipedia article, which is released under the Creative Commons Attribution-Share-Alike License 3.0.
